Power Supply:

    A variable DC power supply is a versatile device used to provide a direct current at various voltage levels to power electronic circuits and devices. This equipment comes with adjustable voltage and current settings, allowing users to precisely control and regulate the output power. It is commonly used in laboratories, workshops, and electronic repair shops for testing and troubleshooting purposes. The variable DC power supply typically consists of a power transformer, rectifier, voltage regulator, and output terminals. It provides a stable and reliable power source, ensuring that the connected electronic components receive the necessary power to function optimally. With its ability to deliver a wide range of voltages, this power supply is an essential tool for professionals working with electrical and electronic equipment.

Variable DC Power Supply

Variable DC Power Supply
Variable DC Power Supply

    Specifications:

    Output

    DC Voltage Options:
  • MV-1440-12: 12V
  • MV-1440-24: 24V
  • MV-1440-36: 36V
  • MV-1440-48: 48V
  • MV-3600-120: 120V

    • Rated Current:
  • MV-1440-12: 120A
  • MV-1440-24: 60A
  • MV-1440-36: 40A
  • MV-1440-48: 30A
  • MV-3600-120: 30A

    • Current Range:
  • 0 to the rated curren

    • Rated Power:
  • MV-1440-12: 1440W
  • MV-1440-24: 1440W
  • MV-1440-36: 1440W
  • MV-1440-48: 1440W
  • MV-3600-120: 3600W

    • Output Voltage Adjustment Range:
  • MV-1600-12: 7.2 ~ 15V
  • MV-1600-24: 9.6 ~ 30V
  • MV-1600-36: 14.4 ~ 45V
  • MV-1600-48: 19.2 ~ 60V
  • MV-3600-120: 20 ~ 120V

    • Input
  • Line Regulation:±1.0%
  • Load Regulation:±0.5%
  • Hold Up Time: 16ms / 230VAC at 75% load, 10ms / 230VAC at full load

    • Functions and Features
  • Constant Current Level Programming: Enables precise adjustment of
    • the current level from 20% to 100% of the rated current.
  • Constant Voltage Level Programming: Allows for the output voltage
    • to be finely tuned using a LabView-based software application

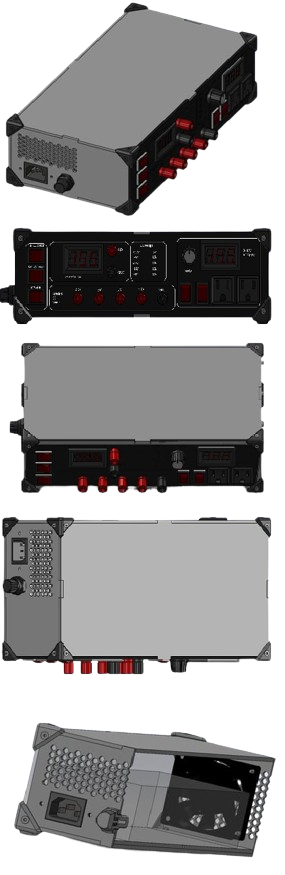

Standard DC and Variable AC Power Supply

These specifications describe a versatile power supply system that includes both fixed DC power supplies (3.3V, 5V, 12V, 48V) and a variable AC voltage supply (0-200V). The system supports precise adjustments in current and voltage, ensuring stable and reliable performance across a range of applications.

Standard DC and Variable AC Power Supply
Standard DC and Variable AC Power Supply

    Specifications:

    Output

    DC Voltage Options:
  • MVL-16-3.3: 3.3V
  • MVL-50-5: 5V
  • MVLP-120-12: 12V,-12
  • MVL-1000-48: 48V
  • MVAC-500-200:200V

    • Rated Current:
  • MVL-16-3.3: 5A
  • MVL-50-5: 10A
  • MVLP-120-12: 10A
  • MVL-1000-48: 20A
  • MVAC-500-200:2.5A

    • Current Range:
  • 0 to the rated current
  • MV-1440-12: 1440W
  • Rated Power:
  • MVL-16-3.3: 15W
  • MVL-50-5: 50W
  • MVLP-120-12: 120W
  • MVL-1000-48: 1000W
  • MVAC-500-200:500W

    • Output Voltage Adjustment Range:
  • MVAC-500-200: 0 ~ 200V
    • MVAC-500-200:
  • 0 ~ 200V
    • Load Regulation:
  • ±0.5%

    • Input
  • Voltage Range:90 ~ 264VAC
  • Frequency Range:47 ~ 63Hz
  • Power Factor: 0.97/230VAC at full load
  • Efficiency:89% (typical)
  • Efficiency:89% (typical)

    • Functions and Features
  • Adjustable AC Voltage: Allows for the output AC
    • voltage to be finely tuned using a knob.
  • Constant Voltage Level Programming: DC power sources are
    • maintained at their constant value from zero to the rated current value.
